8 Stack Tower Multi-Jungle (MJ8)

The Signature Series MJ8 is a multi-faceted piece of equipment that can be customized with various add-ons, configurations and setups to provide exercisers with nearly limitless workout variety. Allowing up to eight exercisers at once, the MJ8 is perfect for group training. Cable Motion™ Technology employs user-defined paths of motion that allow for a nearly endless variety of strength training options that builds balance, stability, and power.

Attach any multi-jungle to a SYNRGY360 system to add more versatility and excitement to small group training programs.

Share on facebook
Share on twitter
Share on linkedin

STATION OPTIONS

  • MULTI-JUNGLE PULLEY HIGH

    MJDPH

  • MULTI-JUNGLE DUAL PULLEY LOW

    MJDPL

  • MULTI-JUNGLE ADJUSTABLE PULLEY 4:1

    MJAP41

  • MULTI-JUNGLE ADJUSTABLE PULLEY

    MJAP

  • MULTI-JUNGLE LAT PULLDOWN

    MJLP

  • MULTI-JUNGLE DUAL PULLEY PULLDOWN

    MJLPD

  • MULTI-JUNGLE LOW ROW

    MJRW

  • MULTI-JUNGLE DUAL PULLEY ROW

    MJRWD

  • MULTI-JUNGLE TRICEPS PUSHDOWN

    MJTP

  • MULTI-JUNGLE ADJUSTABLE CROSSOVER CONNECTS CORE

    MJAXO

  • MULTI-JUNGLE FIXED CROSSOVER CONNECTS CORE

    MJFXO

  • MULTI-JUNGLE ADJUSTABLE CROSSOVER

    MJACO

  • MULTI-JUNGLE FIXED CROSSOVER

    MJFCO

  • MULTI-JUNGLE HANDLE ACCESSORY RACK

    MJHAR

  • MULTI-JUNGLE HIGH LOW PULLEY

    MJHL

  • MULTI-JUNGLE ASSIST DIP CHIN

    MJADC

YOUR FACILITY

  • EXTREME VERSATILITY

    Custom configurations allow facilities to create strength training areas that meet the needs of any exerciser. Multi-jungles can be used for individual training or incorporated into a small group training program.

  • TRAINING OPTIONS

    Choose from traditional machines, like a seated row, or more contemporary dual pulley high and low stations that employ Ground Base training to improve balance and stability.

  • SPACE EFFICIENCY

    Each multi-jungle offers exercisers a wide range of training possibilities without taking up a lot of valuable space.

Product Specifications

Cables

7×19 strand construction, lubricated, nylon-coated cable meets U.S. military specifications

Cushioning

Contoured cushions utilize a molded foam for superior comfort and durability

Frame Description

11-gauge steel frame ensures maximum structural integrity; Standard rubber feet protect base of the frame and prevent the machine from slipping; Each frame receives an electrostatic powder coat finish to ensure maximum adhesion and durability

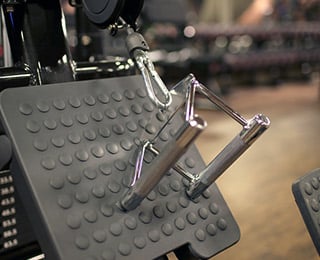

Hand Grips

Grips retained with aluminum collars, preventing them from slipping during use Hand grips are a durable urethane composite

Instructional Placards

Easy-to-follow instructions illustrate proper use and muscles trained

Pulleys

4-1/2" (11 cm) and 6" (15 cm) diameter fiberglass-impregnated nylon pulleys feature sealed bearings

Shrouds

Optional front shrouds

Suspension Training

Manufacturer REQUIRES that this product be secured to the floor when used with body weight strap training products to stabilize and eliminate rocking or tipping over

Weight Plates & Guide Rods

7/16" (11 mm) diameter weight selector pin magnetically locks in place and is connected to stack to prevent loss; Solid-steel weight plates. Top weight plate is fitted with self-lubricating bushings

Multi-Jungle Core Tower (MJCORE) Dimensions (L x W x H)

32.5 in x 32.5 in x 94 in (83 cm x 83 cm x 239 cm)

Multi-Jungle Core Tower (MJCORE) Weight

225 lb (103 kg)

MJ Dual Pulley High (MJDPH) Dimensions (L x W x H)

20 in x 50 in x 92in (51 cm x 127 cm x 234 cm)

MJ Dual Pulley High (MJDPH) Weight

430 lbs (195 kg)

MJ Dual Pulley High (MJDPH) Weight Stack Weight in kgs

145 kg

MJ Dual Pulley High (MJDPH) Weight Stack Weight in lbs

290 lbs

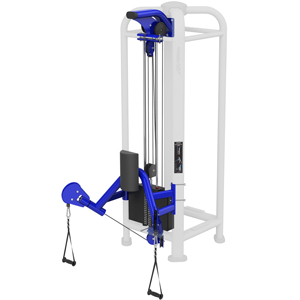

MJ Dual Pulley Low (MJDPL) Dimensions (L x W x H)

22 in x 48 in x 92 in (56 cm x 122 cm x 234 cm)

MJ Dual Pulley Low (MJDPL) Weight

435 lb (197 kg)

MJ Dual Pulley Low (MJDPL) Weight Stack Weight in kgs

145 kg

MJ Dual Pulley Low (MJDPL) Weight Stack Weight in lbs

290 lb

MJ Adjustable Pulley 4:1 (MJAP41) Dimensions (L x W x H)

18 in x 32.5 in x 92 in (46 cm x 83 cm x 234 cm)

MJ Adjustable Pulley 4:1 (MJAP41) Weight

460 lb (209 kg)

MJ Adjustable Pulley 4:1 (MJAP41) Weight Stack Weight in kgs

195 kg

MJ Adjustable Pulley 4:1 (MJAP41) Weight Stack Weight in lbs

390 lb

MJ Adjustable Pulley (MJAP) Dimensions (L x W x H)

14.5 in x 18.5 in x 92 in (37 cm x 47 cm x 234 cm)

MJ Adjustable Pulley (MJAP) Weight

260 lb (118 kg)

MJ Adjustable Pulley (MJAP) Weight Stack Weight in kgs

95 kg

MJ Adjustable Pulley (MJAP) Weight Stack Weight in lbs

190 lb

MJ Lat Pulldown (MJLP) Dimensions (L x W x H)

26.75 in x 37.25 in x 92 in (68 cm x 95 cm x 234 cm)

MJ Lat Pulldown (MJLP) Weight

340 lb (155 kg)

MJ Lat Pulldown (MJLP) Weight Stack Weight in kgs

130 kg

MJ Lat Pulldown (MJLP) Weight Stack Weight in lbs

260 lb

MJ Dual Adjustable Pulley Pulldown (MJLPD) Dimensions (L x W x H)

26.75 in x 37.25 in x 92 in (68 cm x 95 cm x 234 cm)

MJ Dual Adjustable Pulley Pulldown (MJLPD) Weight

340 lb (155 kg)

MJ Dual Adjustable Pulley Pulldown (MJLPD) Weight Stack Weight in kgs

130 kg

MJ Dual Adjustable Pulley Pulldown (MJLPD) Weight Stack Weight in lbs

260 lb

MJ Low Row (MJRW) Dimensions (L x W x H)

26.75 in x 37.25 in x 92 in (68 cm x 95 cm x 234 cm)

MJ Low Row (MJRW) Weight

360 lb (164 kg)

MJ Low Row (MJRW) Weight Stack Weight in kgs

130 kg

MJ Low Row (MJRW) Weight Stack Weight in lbs

260 lb

MJ Dual Pulley Row (MJRWD) Dimensions (L x W x H)

26.75 in x 37.25 in x 92 in (68 cm x 95 cm x 234 cm)

MJ Dual Pulley Row (MJRWD) Weight

360 lb (164 kg)

MJ Dual Pulley Row (MJRWD) Weight Stack Weight in kgs

130 kg

MJ Dual Pulley Row (MJRWD) Weight Stack Weight in lbs

260 lb

Pushdown (MJTP) Dimensions (L x W x H)

4.5 in x 21.25 in x 92 in (12 cm x 54 cm x 234 cm)

MJ Triceps Pushdown (MJTP) Weight

225 lb (103 kg)

MJ Triceps Pushdown (MJTP) Weight Stack Weight in kgs

95 kg

MJ Triceps Pushdown (MJTP) Weight Stack Weight in lbs

225 lb

MJ Triceps Pushdown (MJTP) Availability

Available only on MJ8 and MJ12

Adjustable Crossover - Connects Core (MJAXO) Dimensions (L x W x H)

23 in x 116 in x 94 in (59 cm x 295 cm x 239 cm)

Adjustable Crossover - Connects Core (MJAXO) Weight

600 lb (273 kg)

Adjustable Crossover - Connects Core (MJAXO) Weight Stack Weight in kgs

95 kg

Adjustable Crossover - Connects Core (MJAXO) Weight Stack Weight in lbs

190 lb

Adjustable Crossover - Connects Core (MJAXO) Availability

Available only on MJ8 and MJ12

Fixed Crossover - Connects Core (MJFXO) Dimensions (L x W x H)

23 in x 91.5 in x 94 in (59 cm x 233 cm x 239 cm)

Fixed Crossover - Connects Core (MJFXO) Weight

530 lb (241 kg)

Fixed Crossover - Connects Core (MJFXO) Weight Stack Weight in kgs

95 kg

Fixed Crossover - Connects Core (MJFXO) Weight Stack Weight in lbs

190 lb

Fixed Crossover - Connects Core (MJFXO) Availability

Available only on MJ8 and MJ12

MJ Adjustable Crossover (MJACO) Dimensions (L x W x H)

28.5 in x 142 in x 94 in (73 cm x 361 cm x 239 cm)

MJ Adjustable Crossover (MJACO) Weight

720 lb (327 kg)

MJ Adjustable Crossover (MJACO) Weight Stack Weight in kgs

95 kg

MJ Adjustable Crossover (MJACO) Weight Stack Weight in lbs

190 lb

MJ Fixed Crossover (MJFCO) Dimensions (L x W x H)

28.5 in x 117 in x 94 in (73 cm x 298 cm x 239 cm)

MJ Fixed Crossover (MJFCO) Weight

650 lb (295 kg)

MJ Fixed Crossover (MJFCO) Weight Stack Weight in kgs

95 kg

MJ Fixed Crossover (MJFCO) Weight Stack Weight in lbs

190 lb

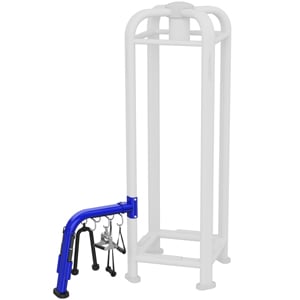

Handle Accessory Rack (MJHAR) Dimensions (L x W x H)

27 in x 8.5 in x 28 in (69 cm x 22 cm x 72 cm)

Handle Accessory Rack (MJHAR) Weight

31 lb (15 kg)

MJ High Low Pulley (MJHL) Dimensions (L x W x H)

10.25 in x 14.5 in x 94 in (26 cm x 37cm x 239 cm)

MJ High Low Pulley (MJHL) Weight

260 lbs (118 kgs)

MJ High Low Pulley (MJHL) Weight Stack Weight in kgs

95 kgs

MJ High Low Pulley (MJHL) Weight Stack Weight in lbs

190 lbs

MJ High Low Pulley (MJHL) User resistance per handle

95 lbs (47.5 kgs)

MJ High Low Pulley (MJHL) Accessories Included

Short strap handle, ankle strap

MJ Assist Dip Chin (MJADC) Dimensions (L x W x H)

49 in x 46.5 in x 97.75 in (125 cm x 118 cm x 249 cm)

MJ Assist Dip Chin (MJADC) Weight

555 lbs (252 kgs)

MJ Assist Dip Chin (MJADC) Weight Stack Weight in kgs

147.5 kgs

MJ Assist Dip Chin (MJADC) Weight Stack Weight in lbs

295 lbs

Product Videos
